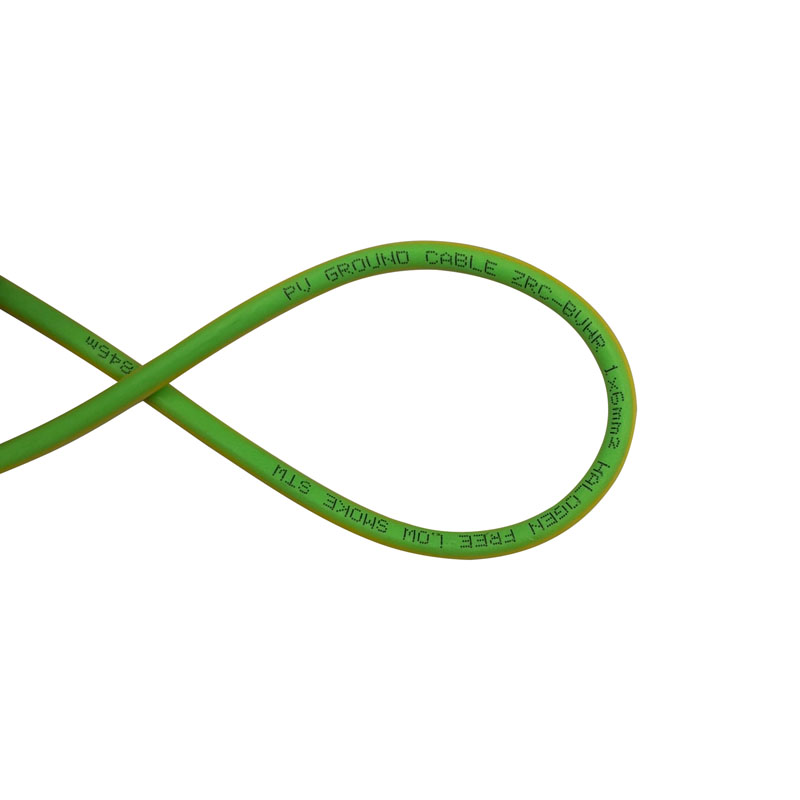

Tinned Alloy Solar Earthing Cable

To facilitate installation, SOWELLSOLAR Tinned Alloy Solar Earthing Cable is designed to be flexible, allowing it to navigate around structures and corners in solar panel arrays. It’s available in various sizes and gauges, the cable can be selected based on the specific grounding requirements of the solar power system.

Send Inquiry

Product Description

Designed for ease of identification and maintenance, SOWELLSOLAR Tinned Alloy Solar Earthing Cable simplifies monitoring and upkeep tasks within the solar power system.

Choosing a high-quality Tinned Alloy Solar Earthing Cable ensures not only the safety of the solar installation but also contributes to the overall efficiency and longevity of the solar energy system.


Features of Tinned Alloy Solar Earthing Cable:

Conductive Excellence:

The cable features a conductor made from high-quality copper and aluminum alloy, combining excellent conductivity with strength and corrosion resistance.


Safety Assurance:

Designed for grounding applications in solar energy systems, the cable provides a secure and efficient pathway for electrical fault currents to reach the ground, ensuring safety and equipment protection.


UV Resistance:

Engineered to withstand exposure to ultraviolet (UV) radiation, the cable is well-suited for outdoor solar installations where it may be subjected to sunlight.

Part No. Model Rated Voltage Conductor cross section mm2 Conductor material Strand design Number x φmm Outer-φmm Conductor resistance Ω / km 20℃ Sheath Color
ZC-BVHR-40GY AZ2-K 1000V 1X4.0 Tinned CU-AL alloy 56/0.285 4.9±0.1mm 8.21 Yellow-Green
ZC-BVHR-60GY AZ2-K 1000V 1X6.0 Tinned CU-AL alloy 84/0.285 5.1±0.1mm 5.09 Yellow-Green
ZC-BVHR-100GY AZ2-K 1000V 1X10 Tinned CU-AL alloy 77/0.4 6.1±0.1mm 3.39 Yellow-Green
ZC-BVHR-160GY AZ2-K 1000V 1X16 Tinned CU-AL alloy 126/0.4 7.3±0.1mm 1.95 Yellow-Green

* The product model ZRC-BVHR will be changed to AZ2-K from January 1, 2023
