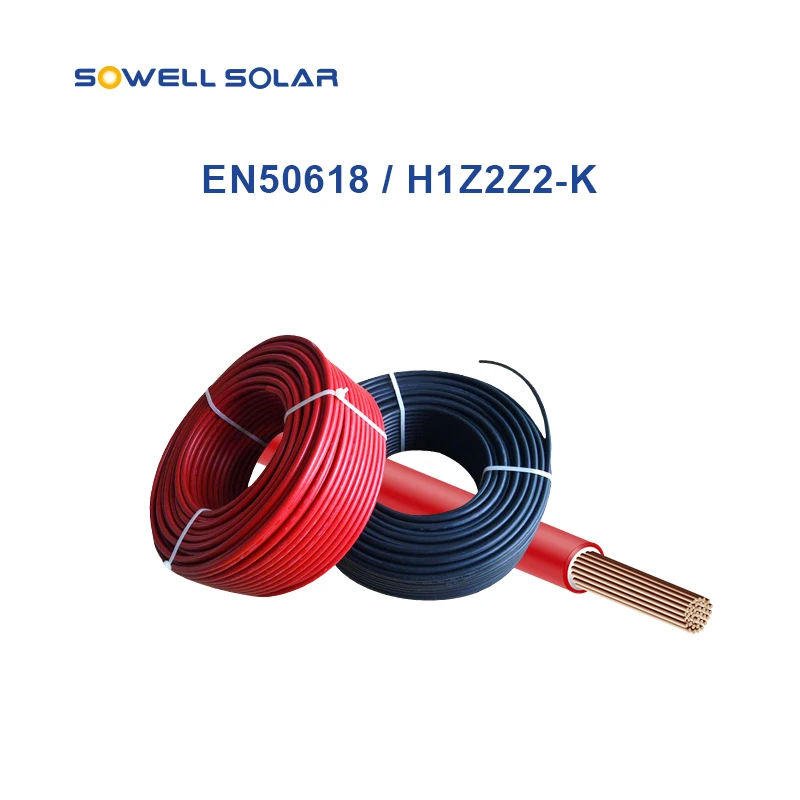

Photovoltaic H1Z2Z2-K Cable - EN 50618

This halogen-free, cross-linked polyolefin double-layer photovoltaic (PV) cable is specifically designed for solar power generation systems.

Photovoltaic H1Z2Z2-K Cable - EN 50618 is fully compatible with most photovoltaic components rated up to 1500 V DC, including PV junction boxes and PV connectors, making it an ideal solution for residential, commercial, and utility-scale solar installations.

Engineered for long-term outdoor use, the cable delivers excellent electrical performance, mechanical strength, and environmental resistance, ensuring safe and reliable power transmission throughout the service life of the PV system.

Cable Surface Marking

PNTECH Solar PV Cable

EN 50618 H1Z2Z2-K

1 × ** mm²

DC 1500 V

Do not disconnect under load

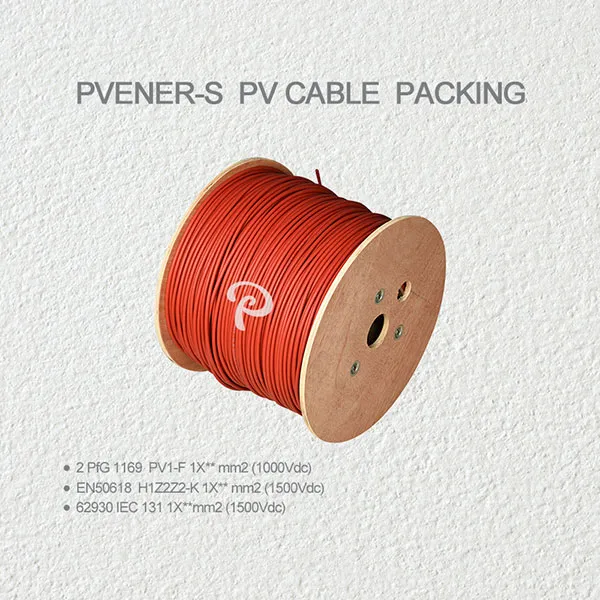

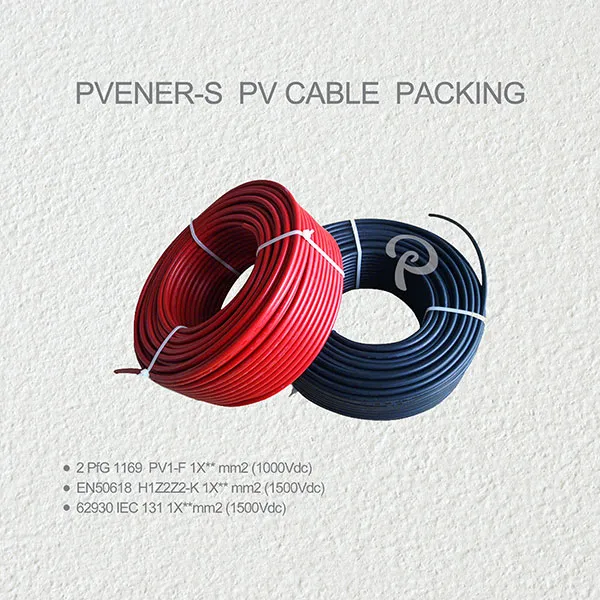

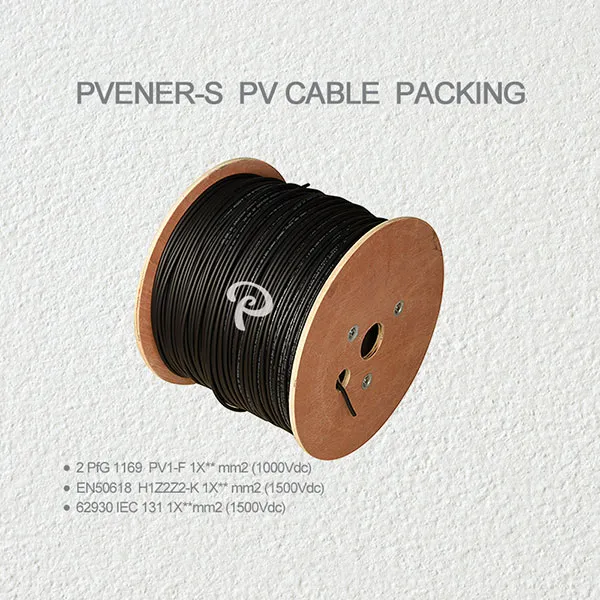

Packaging

4 mm² Solar PV Cable

100 meters per roll, 112 rolls per pallet

500 meters per roll, 18 rolls per pallet

Container Loading

One 20-foot container can load 20 pallets

Customization

Other cable sizes, roll lengths, and packaging options are available upon request

How is Photovoltaic H1Z2Z2-K Cable - EN 50618 designed?

1.Conductor

Tinned copper conductor, manufactured in accordance with IEC 60228, Class 5, providing excellent flexibility, conductivity, and corrosion resistance.

2.Insulation

125°C low-smoke, halogen-free flame-retardant polyolefin, ensuring high thermal stability, electrical safety, and environmental protection.

3.Outer Sheath

125°C low-smoke, halogen-free flame-retardant polyolefin, offering strong resistance to heat, abrasion, and outdoor environmental conditions.

4.Special Process

Electron beam cross-linking (E-beam cross-linking) technology, enhancing mechanical strength, thermal aging resistance, and long-term reliability.

Parameter

Electrical characteristics

We have 10 years' experience in production of PV cables and PV connectors. We can produce 200,000 meters of PV cables and 50,000 sets of PV connectors per day. Our standardized pallet is more suitable for global sales. Our factory not only has 6 high-speed cable production lines, but also has electronic irradiation cross-linking equipment, which is the key equipment to control the quality of the cable. Our advanced technology guarantees the production of high-quality cables.

Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivered out. We have got TUV, UL and CE certification and all kinds of testing report, if you want please just ask us for it!
