SOWELLSOLAR Portative Solar Installation Tool Kits are available for procurement of photovoltaic installation tools covering PV cable cutting, MC4 terminal crimping, connector assembly, and selected on-site testing work. Three configurations combine different crimping pliers, cable cutters, MC4 connectors, connector spanners, testing equipment, and storage cases for different PV installation requirements.
All kits are supplied together with the solar cable and photovoltaic accessories range of Zhejiang Sowell Electric Co., Ltd. You can review the full product catalogue before choosing a configuration.
The three configurations are differentiated by their working functions rather than simply by the number of accessories included.
The basic configuration contains the essential tools for PV cable cutting, MC4 terminal crimping, and connector assembly.
The LY-2546B crimping plier is specified for 2.5–6 mm² PV cable. No photovoltaic testing instrument is included in this configuration.
The second Portative Solar Installation Tool Kits adds an EY800W solar panel tester to the cable-processing and connector-assembly tools.
The additional testing instrument distinguishes this configuration from the basic version and adds photovoltaic module testing to the installation tool set.
The aluminum-case configuration combines expanded cable-processing tools with two MC4 crimping die options.
The aluminum alloy case provides rigid storage, while the EVA interior positions and cushions the tools. The A2546B and A2546B-5 configurations provide two die options for different MC4 terminal requirements.
| Item | Basic Oxford-Cloth Kit | Installation & Testing Kit | Aluminum-Case Kit |
|---|---|---|---|
| Crimping tool | LY-2546B | A2546B | A2546B / A2546B-5 |
| Specified cable range | 2.5–6 mm² | Not specified | Not specified |
| Cable cutter | Included | Included | Included |
| Wire stripping tool | — | — | Included |
| MC4 connectors | Included | Included | Included |
| Connector spanners | 2 pcs | 2 pcs | Socket spanners |
| Solar panel tester | — | EY800W | — |
| Storage | Oxford-cloth bag | Reinforced Oxford-cloth bag | Aluminum alloy case |
| Internal protection | — | — | EVA foam |
The stated 2.5–6 mm² range applies specifically to the LY-2546B configuration. No additional cable range is specified for the A2546B or A2546B-5 configurations in the supplied product data.
The three versions of Portative Solar Installation Tool Kits address different combinations of cable preparation, connector assembly, testing, and tool storage.
SOWELLSOLAR has been engaged in the photovoltaic industry since 2006 and operates manufacturing facilities in Huzhou and Ningbo, China. The two facilities cover approximately 50,616 m² and operate 11 production lines, with stated solar cable production capacity exceeding 300 km per day.

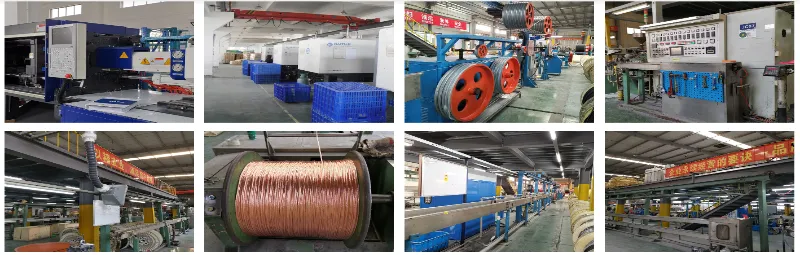

The production system includes extruding machines, spark erosion machines, crosslink irradiation machines, ink-jet printing machines, and insulation resistance testing instruments. Details of the related cable products are available under Solar Photovoltaic Cable.
| Work Requirement | Basic Kit | Testing Kit | Aluminum-Case Kit |
|---|---|---|---|
| PV cable cutting | ✓ | ✓ | ✓ |
| MC4 terminal crimping | ✓ | ✓ | ✓ |
| MC4 connector assembly | ✓ | ✓ | ✓ |
| PV module testing | — | ✓ | — |
| Wire stripping | — | — | ✓ |
| A2546B / A2546B-5 die options | — | — | ✓ |
| Oxford-cloth storage | ✓ | ✓ | — |
| Aluminum alloy case | — | — | ✓ |
| EVA interior | — | — | ✓ |
Portative Solar Installation Tool Kits provide three defined combinations for PV cable processing, MC4 connector assembly, photovoltaic testing, and tool storage. SOWELLSOLAR Portative Solar Installation Tool Kits can therefore be selected according to the actual installation workflow and the required combination of crimping, cutting, testing, and storage functions.
